Deep Well Extraction
Accessing clean, reliable groundwater from deep wells is a fundamental challenge for many communities, farms, and off-grid properties. Our solar-powered deep well pumps are engineered specifically for high-head applications, delivering the power and reliability needed to lift water from significant depths. Forget the limitations of grid dependency or the high costs of diesel; our solutions provide a sustainable and economical way to tap into the abundant water resources beneath your feet.
Who Needs This Solution?
Our deep well systems are designed for anyone needing to extract water from depths typically greater than 25 meters (80 feet).
•Rural & Off-grid Homeowners: Secure a private, potable water supply for your household, garden, and livestock, completely independent of municipal services and power grids.
•Agricultural Operations: Provide consistent water for irrigation and livestock, even in arid regions where the water table is extremely low. Our pumps ensure your operations remain productive and profitable.
•Community Water Projects: Supply entire villages or developments with a centralized, reliable water source powered by the sun. This is often the most feasible solution for providing drinking water in remote areas.
•Mining & Construction Sites: Fulfill dewatering and dust control requirements at remote sites where power is unavailable or prohibitively expensive.

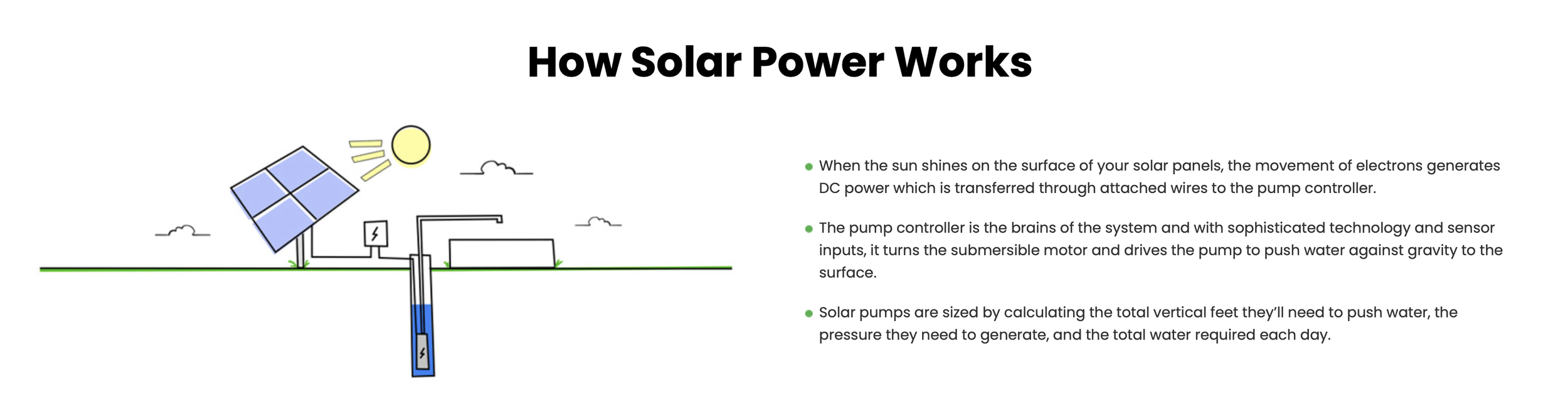

How It Works
Our system is optimized for the unique physics of deep well pumping.

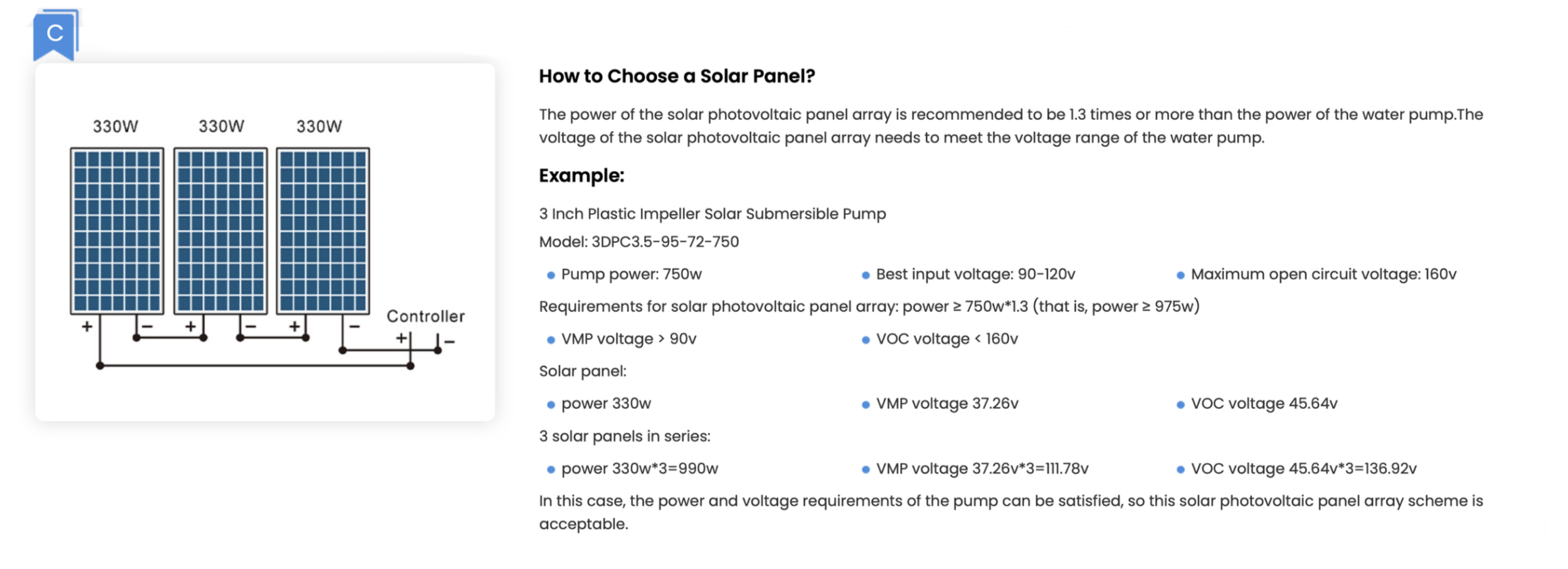

1.High-Power Solar Array: A solar array is carefully sized to provide the necessary voltage and current to drive the high-powered pump motor against extreme head pressure.
2.Advanced MPPT Controller: The Maximum Power Point Tracking (MPPT) controller is the brain of the system. It constantly optimizes the power from the solar panels and regulates the pump's speed to match solar conditions, maximizing water output.
3.High-Head Submersible Pump: A multi-stage submersible pump is lowered deep into the well. Its design, featuring multiple impellers stacked together, allows it to build the immense pressure required to push water to the surface from hundreds of meters below.
4.Surface Delivery & Storage: The water is delivered to a pressure tank for on-demand household use or to a large storage tank (cistern) for agricultural or community supply, ensuring water is available day and night.

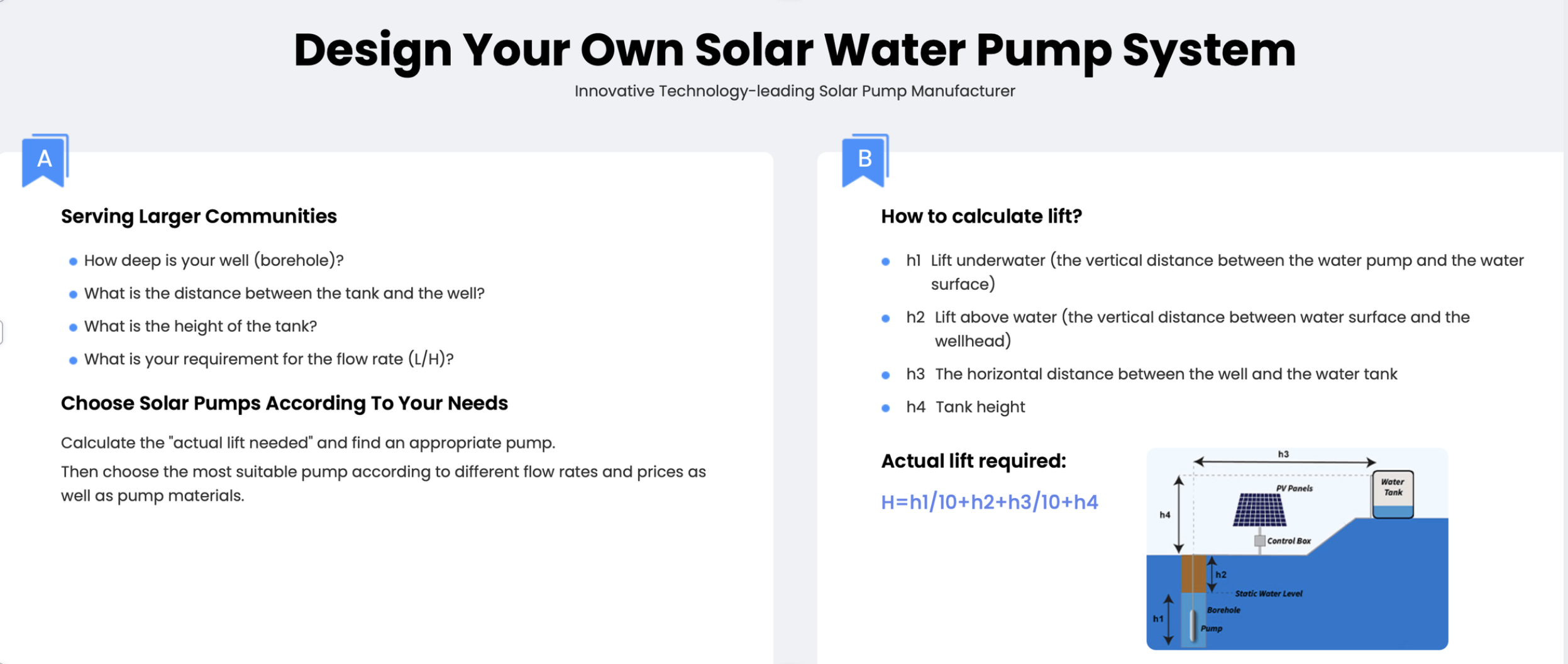

How to Design Your System
Sizing a deep well system is a technical process. To ensure success, we need precise information:
•What is the static water level? (The distance from the ground to the water when the pump is off.)
•What is the pumping water level? (The level the water drops to during continuous pumping.)
•What is the total vertical lift required above ground? (e.g., to the top of a storage tank.)
•What is your required daily water volume? (This, along with the total head, determines the required pump size.)

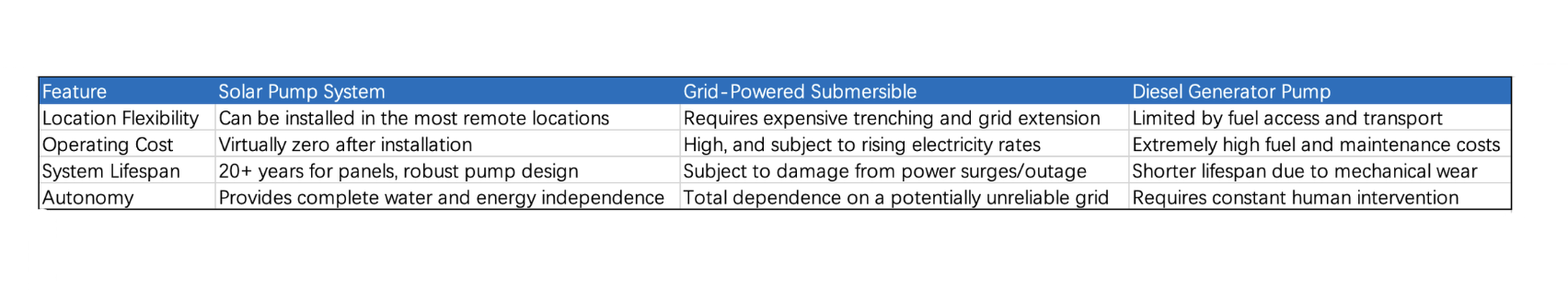

Why Choose a Solar Pump for Deep Wells?
Related Products Recommendation
•4-inch & 6-inch Solar Submersible Pumps: Our workhorse pumps, available in a wide range of horsepower ratings to match various depths and flow requirements. The industry standard for reliability.
•High-Speed Deep Well Pumps: For ultra-deep wells (over 150m / 500ft), these pumps operate at higher RPMs to generate extreme pressure, making previously inaccessible water sources viable.

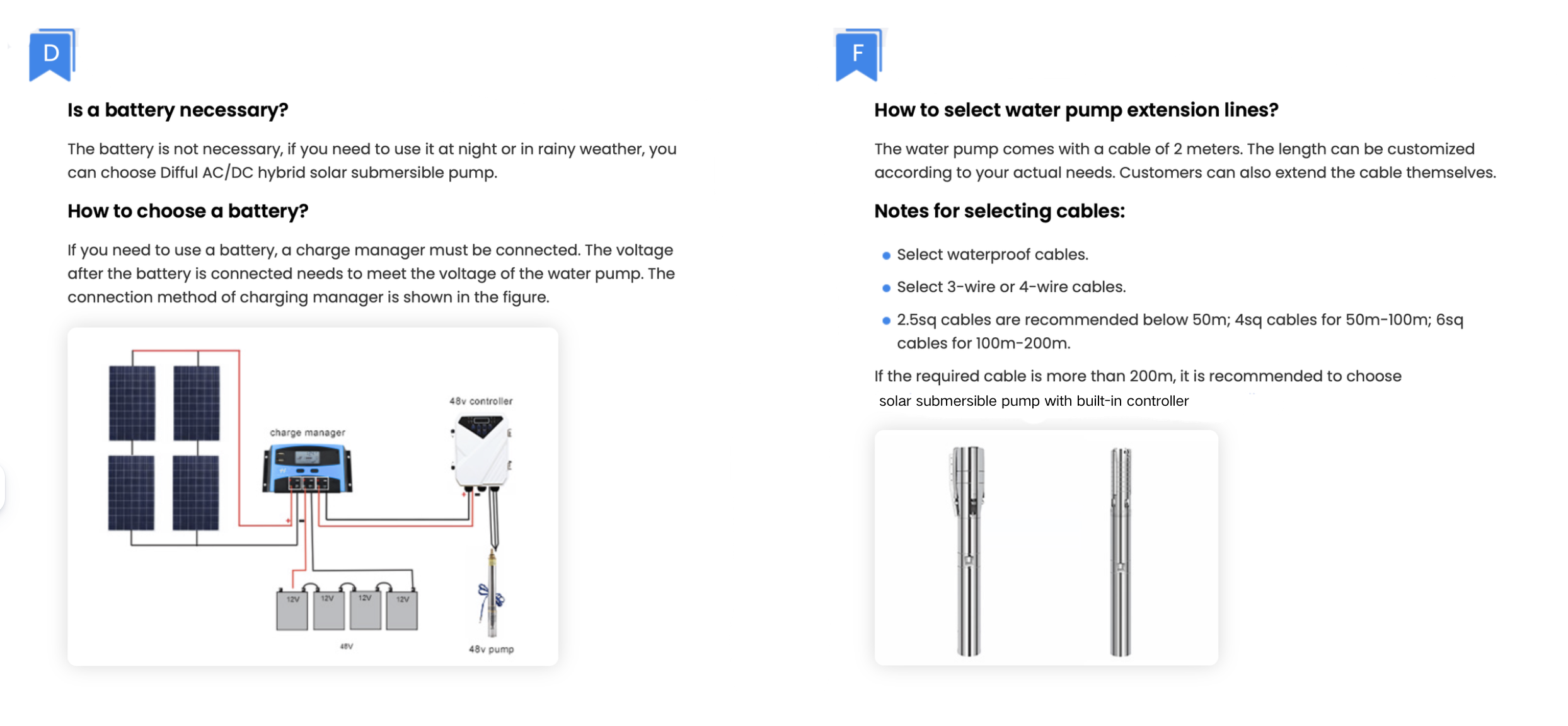

•AC/DC Hybrid Deep Well Systems: For mission-critical water supply, these systems can be powered by solar during the day and automatically switch to an AC source (grid or generator) at night or during cloudy weather, guaranteeing uninterrupted service.
Tap Into Your Deep Water Source
Don't let well depth be a barrier to water security. Our team of deep well specialists is ready to help you design a powerful and efficient solar pumping system. Contact us for a free, detailed analysis and quote.
