Categories：HIGH SPEED DEEP WELL PUMP
Model：4DGS20-160/9-15000-A/D
Type：high speed deep well pumpMaterialStainless steel

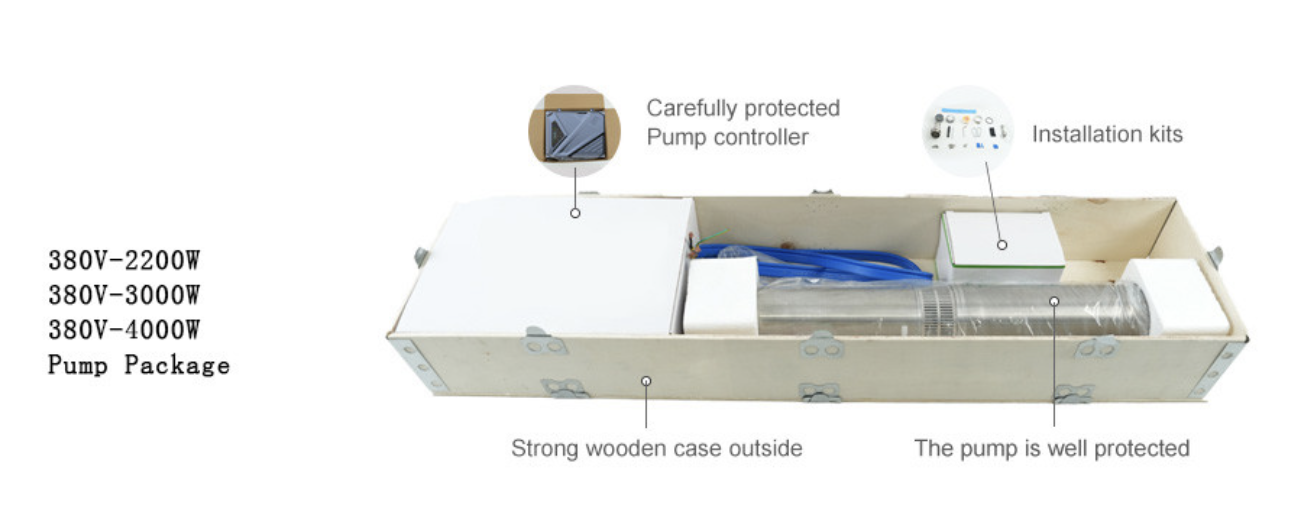

Package： typeWooden case
Warranty：2 years
Certificate：CE, ISO9001
Application：Household; irrigation, livestock
Rated flow（m³/h）：20
Rated head（m）：160
Max.flow（m³/h）：33
Max.head（m）：231
AC voltage（V）：380V
OptimumDC voltage（V）：520-750
Power（kw）：150
Outlet（inch）：2
Cable（m）：2
Pump height（mm）：1445
Pump weight（kg）：26
What we get for you: (Package Include)
- 1 x 4inch high-speed deep well pump with 2m cable

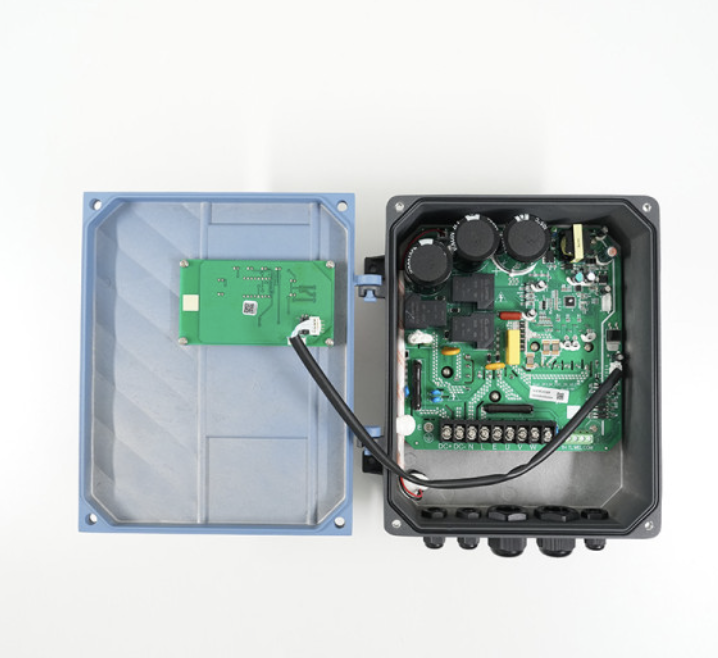

- 1 x AC/DC auto-switching controller with MPPT function
- 1 x Stainless steel or plastic float switch (sensor for tank)
- 1 x Pump outlet joint connector

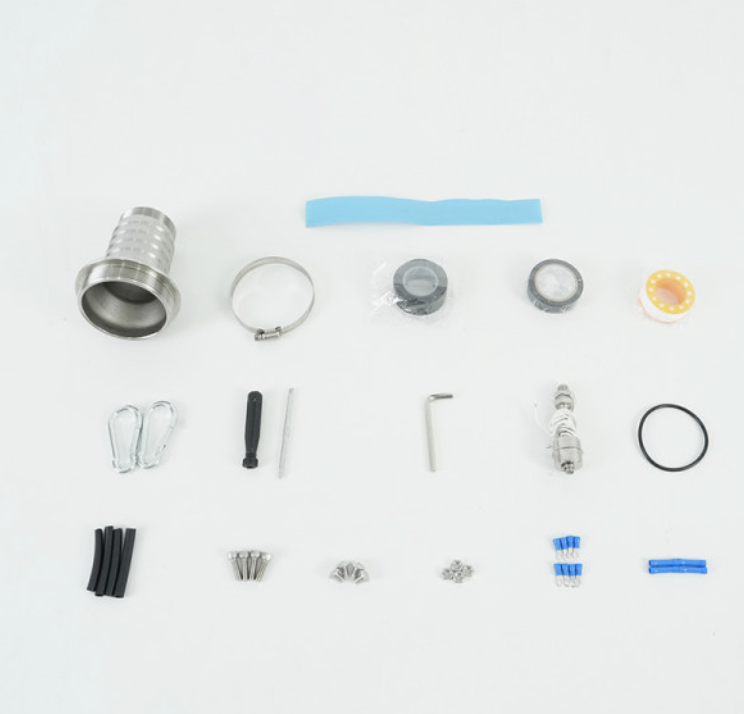

- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
What You need to get by yourself: (Package DO NOT Include)
- Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up is required.
- Poly pipe from pump to the water tank. ( recommend 2inch or over-diameter poly pipe)
- Use a power cable with 3 wires plus earth. We recommend that the cable size should be at least the same as, and not thinner than, the original cable supplied with the pump.
